Pool Fencing Flat Top Combo 1 x 2400mm x 1200mm panel with 16mm tube plus 1 x post plus 4 x shrouds in Black Satin

flat

"January '09 SPECIAL"
 Pool Fencing Flat Top Panel 2400mm x 1200mm high 16mm tube in Black Satin for *$69.00ea - *When ordered in a *Combo

*Combo from $109.50 includes (in 16mm tube) one panel, one post 1800mm & cap, four shrouds & screws.

The Combo includes one panel Flat Top 1200mm high x 2400mm long using 16mm diameter tube in Black Satin, four shrouds with screws and one post with cap (a variety of posts and screws are available)

Flat Top pool fencing panel 2400mm x 1200mm high 16mm tube Black Satin only (does not include shrouds)

pool fencing flat top

"January '09 Special"
Flat Top pool fencing panel wih 16mm tube in Black Satin  $79.00 each

Pool fencing panel is 2400mm x 1200mm high in Black Satin only. Top & Bottom rails are 38x25mm with the 16mm diameter tube punched through the rails and swaged into place, no welds, 71mm apart (gates have 1.6mm thickness tubes welded into place).
Panles with tubes swaged into place have been certified stronger than other panels that are welded using the same 16mm tube. The joint itself is virtually indestructible under normal conditions, making these panels absolutely the best for child safety.
(You will require four (4) shrouds with screws to secure each panel)

Flat Top pool fencing panel 19mm tube (does not include shrouds)

flat

Extra Child Safety !
Flat Top pool fencing panel with 19mm diameter tube $99.00ea  2475mm x 1200mm high in  Black Satin other colours available

Pool fencing panel is 2475mm x 1200mm high and 3000mm x 1200mm high. Tube is 19mm diameter welded 81mm apart. Tubes are drilled through the top and bottom rail and welded underneath.
(You will require four (4) shrouds 38x25mm and screws to secure each panel).
Made at Wacol, Brisbane using 100% Australian aluminium.

Double Rail "C" Type (does not include shrouds) 16mm tube ( or 19mm tube)

pool-fencing-panel-C-type



Pool Fencing panel Double Rail "C" Type in Black Satin with 16mm tube or 19mm tube  Panel
From $125.00 per panel in 16mm tube (2.475mm x 1200mm high)

 or $135.00ea with 19mm tube (3000mm are available and other colours)

Double Rail "C" Type pool fencing panel 2.475m x 1.2m high (3m panels are available). Tubes are 16mm or 19mm diameter welded 84 or 81mm apart respectively. Tubes are drilled through the 38x25mm top, bottom and centre rail and welded underneath. Two top rails are 95mm apart. Second and bottom rail are 1030mm apart.
(You will require six (6) shrouds and screws to secure each panel).
These panels are the strongest panels we make due to all the tubing going straight through the two top rails.
The 19mm tube is especially strong and should be used where max strength is required.
Made at Wacol, Brisbane using 100% Australian aluminium.

Double Rail Top ''B'' type pool fencing panel (does not include shrouds) in 19mm tube

pool fencing double "B type" panel

Double Rail "B" type pool fencing panel 19mm tube
From $130.00 per panel

Pool fencing panel is 2475mm long x 1200mm high and 3000mm x 1200mm high. Tube is 19mm diameter welded 81mm apart. Two top rails are set 100mm apart. Second rail and bottom rail are 1025mm apart. Tubes are drilled through the rails and welded underneath.
(You will require six (6) shrouds 38x25mm and screws to secure each panel.)
Made at Wacol, Brisbane using 100% Australian aluminium.

Picket Top pool fencing panel (does not include shrouds) 16mm tube

pool fencing picket panel

Picket Top pool fencing panel 16mm tube
From $119.00 per panel

Pool fencing panel is 2475mm long x 1200mm high and 3000mm x 1200mm high. Top and bottom rails are 38 x 25mm set 1000mm apart. Tube is set 150mm above top rail. Tubes are 16mm diameter drilled through rails, 84mm apart. 24 black 16mm caps are supplied with these panels to seal off tops of tubes.
(You will require four (4) shrouds 38x25mm and screws to secure each panel.)
Made at Wacol, Brisbane using 100% Australian aluminium.

Ring Top pool fencing panel (does not include shrouds) in 19mm tube

pool fencing ring top panel
Ring Top pool fenicng panel 19mm tube
From $142.00 per panel
Pool fencing panel is 2475mm long x 1200mm high and 3000mm x 1200mm high. All rails are 38 x 25mm. The two top rails are set 81mm apart with a 81x19x3mm ring set between. There are six rings per 2475mm and eight rings per 3000mm panel. Second and bottom rails are 1040mm apart. Tubes are 19mm diameter drilled through rails, 81mm apart. (You will require six (6) shrouds 38x25mm and screws to secure each panel).
Made at Wacol, Brisbane using 100% Australian aluminium.

Pool Fencing Gate (posts not included) includes hinges, safety latch and screws.

pool fencing gate
Pool Fencing Gate
This is the minimum requirement for a pool fencing gate around a swimming pool. Pool fencing gates are made to match the panels, they have a  38x25mm frame to match the 38mm rail panels. Gates are 1000mm wide. The opening between the posts is 1035mm to allow for hinges and latch.
Gates come with a child resistant safety latch and self closing hinges and screws.
Gate are very easy to install with the latch and hinges allowing the gate to swing left or right. Hinges will only fasten to a square/rectangular post.
Made at Wacol, Brisbane using 100% Australian aluminium.

Garden or Front Gate (posts not included) includes hinges, D/latch and screws.

garden gate
Garden or Front Gate
This is not a swimming pool safety gate. This garden gate is exactly the same as a pool gate except it has a D/latch and striker not a pool safety latch. Opening size between your two post is 1035mm.
Hinges will only fasten to a square/rectangular post.
Made at Wacol, Brisbane using 100% Australian aluminium.

Double Driveway Gate (3000mm opening x 1200mm high) not for pool use. ( This gate is in two equal pieces)

Double Driveway Gate

Double Driveway gates (not for pool use) have the same frame as the fencing, 25x25mm or 38x25mm. They match the fencing panels exactly. Four hinges, a D/latch, drop bolt and screws are supplied. Hinges will only fasten to a square/rectangular post. Opening size between your two posts is 3000mm.
Made at Wacol, Brisbane using 100% Australian aluminium.

Pool Fencing Post (includes cap)

pool fencing post
Pool Fencing Post
Pool Fence Posts come in various heights but only in 50x50mm section. For 1200mm high panels the normal height is 1800mm for inground use where 500mm is below the ground surface and 1300mm left above the surface. Posts come with a black pastic cap to seal off the top. Intermediate and gate posts are no different. Sometimes a taller post is used on the latch side of the gate but it is not necessary as the latch is made to go past the top of the post.
Made at Wacol, Brisbane using 100% Australian aluminium.

Pool Fencing Wall Post x 1350mm (includes a cap, fixing screws and plugs)

Pool fencing wall post
Pool Fencing Wall post
Pool Fence Wall Posts are for use when you require to connect a post to a wall, ie to the side of your house, where you cannot dig a hole or put a flanged post near enough to the wall. They come with screws to connect to the wall and 25mm plugs to seal off the holes on the post after you have used the screws and a 50x50mm cap to seal off the top of the post.
Made at Wacol, Brisbane using 100% Australian aluminium.

Pool fencing Flanged Post (includes cap - does not include dyna bolts)

pool fencing flanged post
Pool Fencing Flanged post

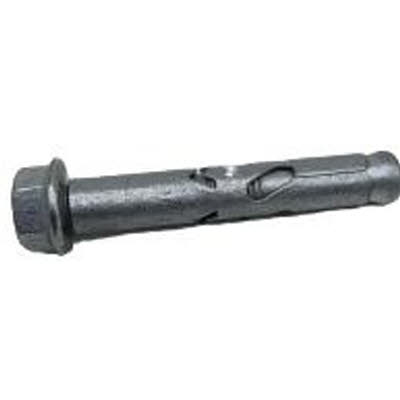

Pool fence Flanged Post is a post with a foot on the base of the post to secure it to the top of concrete or tiles where a hole cannot be dug. The plate or foot has four holes 11mm in diameter to take a 10mm dyna bolt. The plate is 135mm x 100mm and 6mm thick. We advise only to use stainless steel or galvanised dyna bolts as zinc plated are a complete waste of time and very difficult to remove when they rust after a few months.
Made at Wacol, Brisbane using 100% Australian aluminium.

Pool fencing Shrouds and screws ( required with every panel)

pool fencing shroud
Pool Fencing Shroud and Screws

These pool fenceing shrouds are used to connect the panel to the post or any flat surface. They are a square/rectangular socket that the top and bottom rails of the panel slide into when connecting to a post. They come with Standard screws for screwing into aluminium or steel (one screw is supplied to lock together the shroud and the rail of the panel as per illustration). You need to select Standard Galvanised,Standard Stainless for salty areas, Timber or Brick for all connections from the selection box. The colour of the standard galvanised screws supplied are the same colour as the shroud in standard colours or the nearest screw colour in non standard colour fencing. Wood screws are grey only, brick fix are nylon and stainless screws are stainless colour. If we have a problem with a colour match on standard galv screws a " black " screw will be supplied. If you only require some of the shrouds to secure to timber or brick make your selection once for ie standard then again for brick or timber.
If you intend to cut a panel and use it as two panels you will require an extra 4 or 6 shrouds depending on the panel you choose.
( Loop, Loop & Spear, Flat Top and Picket panels require four (4) each and Double Rail, Ring and Cross Top panel require six (6) each.)
Supplied by Syzygy Australia.

This illustrates how to fix a pool fencing panel at an angle. (illustration only)

Pool fencing panel on angles
Pool fencing Shrouds on angles
Where the pool fence panel is to go at an angle, the solution is
