PIK Fence

PIK - Pool & Boundary Fence

PIk - Pool & Boundary Fencing. Made from Galvanised Steel, epoxy base coated and finished in Black powder coating..
Super strong, 32mm pickets x 3mm thick welded to a heavy duty base.
Complies to AS1926.1 for pool fencing.
Panel Size 1200wide x 1280high
Plinth/Base Size 1200 x 100 x 12mm thick
Picket Spacing 80mm centres with 48mm with 48mm gap
A panel weighs 52kg
to be fixed to concrete, timber or grouted.
Orders need to be supplied on a pallet and pallet needs to be added to your order.
A quote for a crane truck delivery will be supplied on receipt of order.

DIY Help Video - https://www.diyhelp.com.au/pik-fencing

!

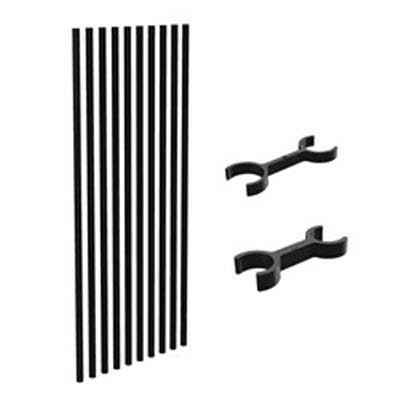

PIK - Picket Kit 1600h - Black

+Shipping

• KIT includes

– 10 x 32mm diameter pickets @ 1600mm long
– 10 x top caps
– 10 x “C” top spacer clips
– 10 x “C” bottom spacer clips
• Pickets are 32mm diameter (3mm wall thickness) galvanised steel with epoxy base coat then powder coated
• Epoxy base coat provides excellent resistance to corrosion
• “C” clips are made from polyethylene
• Kit is suitable for use with grout in installation
• Individual pickets are ideal for installation where:
– higher pickets are required such as step points or change of levels
– deeper embedment of pickets required grouted directly into ground

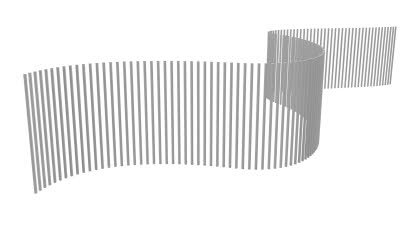

– creating unique shapes or curves

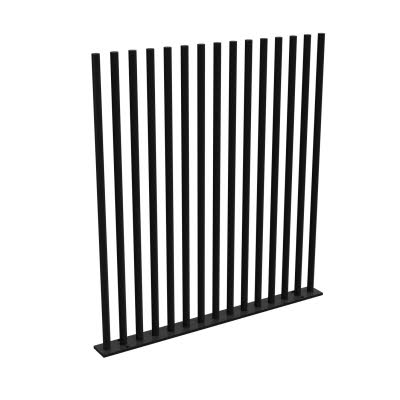

PIK - Straight Panel Black

+Shipping
PIK - Panel Straight 1000mm x 1280mm high in Black

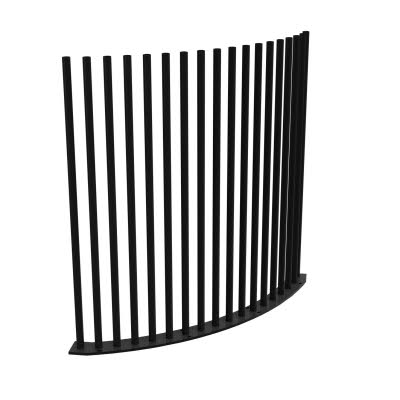

PIk - Curved Panel

+Shipping
PIK - Panel 1000w x 1280mm high in Black

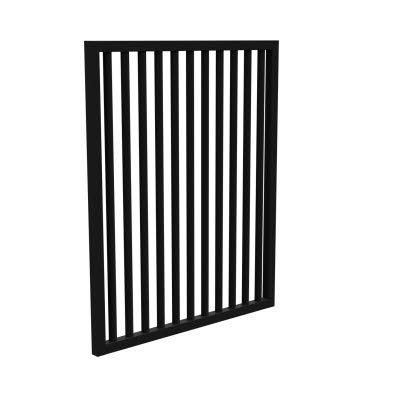

PIK - Gate - Black

+Shipping

PIK Gate
Made from Aluminium for weight reduction.
40x40mm frame with 32mm round balusters
Balusters at 80mm centres, 48mm gap
Complies to AS1926.1 for pool fencing.

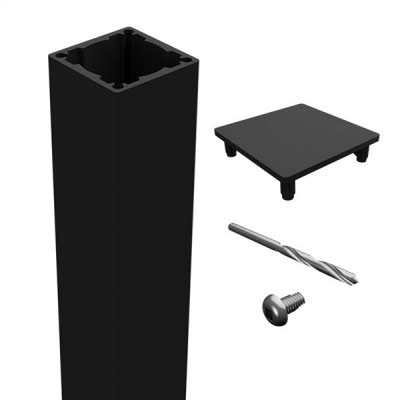

PIK - Gate Kit (Posts)- Black

+Shipping

KIT includes

– 2 X 40x40mm powder coated aluminium extrusion profiles 1257mm long
– 2 x top caps
– 2 x domical covers
– 6 x ST5.5×10 SS410 self tapping screws
– 1 x 5mm diameter drill bit
• Gate kit required when installing gate between PIK® fencing Process of installation
(1) Leave appropriate gap for PIK® gate between PIK® panels
(2) Sleeve 40x40mm profile over adjacent final PIK® pickets create a HINGE and LATCH post
(3) Once posts sleeved, fix off 40x40mm profiles to PIK® pickets with supplied fixings
(4) Install gate between opening created

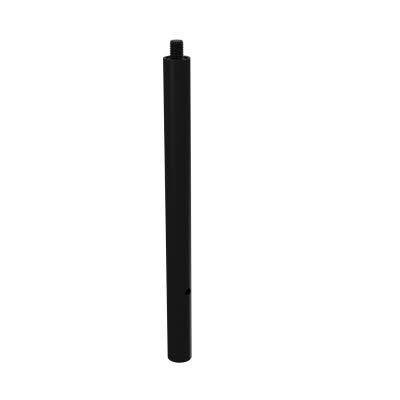

PIK - 400mm Base Extender - 4 x pack

+Shipping
PIK - 400mm Base Extender Pack of 4.
These are connected to the underneath of the base of the panel so panel can be grouted into a concrete slab.

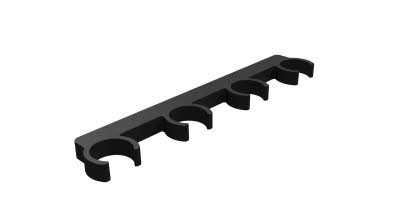

PIK - Fence Panel Joiner Spacer - 5 x Pack

+Shipping
PIK - Fence Panel Joiner Spacer to keep correct spacing when installing panels. 5 x pack

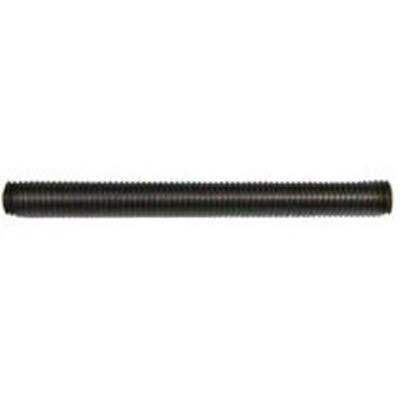

M12 x 120mm Threaded Rod

+Shipping
M12x120mm Threaded Rod - to secure a panel to ground in an addition to securing the Plinth/Base with grout.

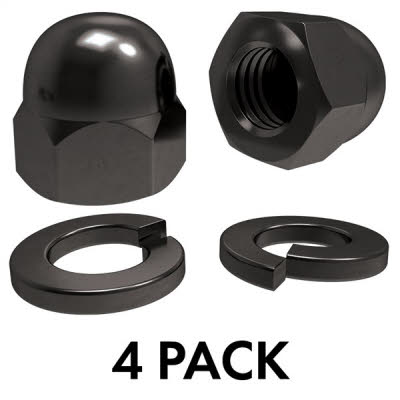

PIK - Domed Nut M12 - 4 Pack

+Shipping
4 x pack of M12 SS316 nuts to cover threaded bar holding down PIK panel base

Steel Crate

+Shipping
Pick-Up Steel Crate. Required on every order to collect.

Soudal - Cartridge Gun

+Shipping

Soudal - Cartridge Gun.
Dripless Trade Quality Heavy Duty Cartridge Gun ( geared ration gun 18:1, suits 300mm Silicon Cartridge and Soudafix 280ml Chemical Anchor Cartridge)

More details

Soudal - Soudafix Anchoring Resin

+Shipping

Soudal - Soudafix CA 1400 (Vinylester) - Chemical anchor 280ml Tube
High performance, two-part anchoring resin to secure anchors to hold down spigots or flanged posts feet.
1 x 280ml Cartridge will be required to fill 24 x holes using 10x120mm Threaded Rod.
1 x 280ml Cartridge will do 24 holes ( 6 x spigots ).
Easy to use and apply           •  Fast cure (20°C = 45min full cure; 30°C = 25min full cure) • Vinylester styrene free • Can be used in damp concrete •

More details

Sika Grout to Secure Core Drilled Spigots

+Shipping
SikaGrout® HES
HIGH EARLY STRENGTH AND RAPID SET CEMENTITIOUS GROUT

SikaGrout® HES is a ready mixed, high quality, Class C shrinkage
compensated grout that sets rapidly with high early strength gain.
SikaGrout® HES is a blend of high alumina cement is based on
supplementary cementitious material aggregates and Sika
admixtures, enabling it to achieve high strengths in short time frame

  • High early strengths (even at low temperatures).
  • High 28 day strengths.
  • Good flow characteristic.
More details

D&D True Close Regular Hinge Set

+Shipping

D&D True Close Regular Hinge Set
Fully adjustable Spring Loaded Hinge Set
Suits Gates up to 30kg

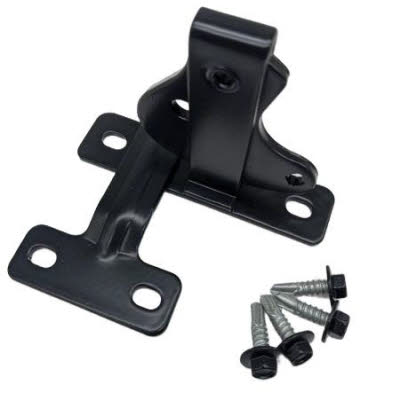

Dlatch & Striker Black

+Shipping

1 x D/latch & Striker for Garden Gate Black

4 x Self Tapping Screws

More details

D&D Lokklatch General Purpose Latch

+Shipping
General-purpose Gate Latch

• Ideal latch for home and garden gates (non safety)
• Key lockable - no need for padlocks or chains
• Quick and easy to install on all gate materials
• Strong polymer design will not rust or stain
• Marine-grade stainless steel components
• Vertically and horizontally adjustable
• Australian Made and Owned
• Lifetime Warranty

D&D LokkLatch Deluxe

+Shipping

Premium privacy and security gate latch with external access

Product Features
• Operates & Locks From Both Sides Of The Gate
• Keyed-Alike Or Key Different Option
• Fits Fence Post Up To 150mm Deep
• Easy Installation: Only One Hole Required
• 6-Pin Rekeyable Locks

300mm Drop Bolt Black

+Shipping

1 x 300mm Drop Bolt for Garden Driveway Gate in Black

2 x Self Tapping Screws

D&D Magnetic Latch and True Close adjustable Hinge Set

+Shipping
D&D Pool Fence Hinge and Latch Set.
Includes a Magna Latch and True Close Hinge Set
Hinges have an adjustable spring.
